Description

Flush-mounted doors of the Architec Line Grezza Slim TS model range

The room starts with the door, and the modern style comes from the Architec Line (AL) series, developed by the Comeo Porte brand.

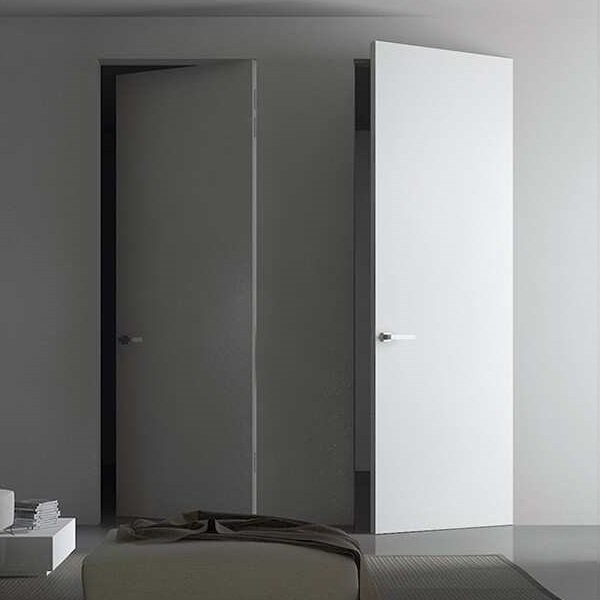

Flush-mounted doors allow you to achieve a perfectly flat surface, completely merging with the wall, visually increasing the space, which is especially relevant in small rooms or rooms with a large number of doors.

The main advantage of the AL model series is its versatility and the possibility of application for various types of wall decoration:

• Flush-mounted door for painting;
• plaster application;
• pasting wallpaper.

The models are able to satisfy any taste in interior design. The Flush-mounted door Grezza Slim TS has a screen panel with honeycomb filling, which is based for further decoration with any finishing material.

Character traits:

• Possibility of installation with left or right, external or internal opening;
• Absence of platband door and wall as one whole;
• Concealed box for a door leaf with a quarter and 44 mm thick;
• Anodized coating – protection of the box from oxidation and mechanical damage.

Screw-mounted doors are equipped with accessories:

• Hidden curtains Krona Koblenz K1019 – 2 units;
• AGB WC magnetic lock + reverse bar;
• Condenser;
• Mounting kit*;
• Milled hole for the handle;
• Supplied assembled.

*The company reserves the right to change the design and assembly of products.

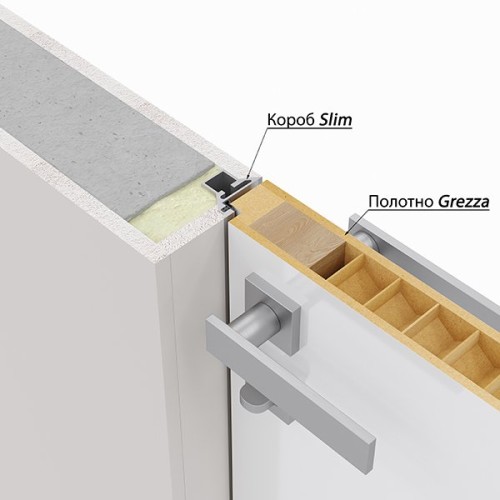

SLIM TS door frame
Slim TS anodized aluminum door frame is intended for 44 mm thick door panels. The box was developed and patented by the Comeo Porte factory and is manufactured in our country. The feature of this box is its Flush-mounted installation. The possibility of installing doors with opening of the canvas on itself and away from itself. Ego’s minimalist design allows you to install doors without using platbands, giving the interior lightness.

The Slim TS box is made of anodized aluminum.

Complete box:

• The finished profile of the Slim TS box for door panels of the specified dimensions with milling of the seat for the Flush-mounted hinges of Koblenz Kombi-3 and the AGB Polaris mechanism.
• Condenser.
• Assembly set of fixed boxes:
  – 4 corners + 16 screws;
  – 7 plates/

Choose concealed installation doors using the convenient catalog on our website.

The AL model range is a variety of aesthetic options created to create a harmonious design.
